Body Construction: AluminumBody Dimensions: 4 1/2″ x 5 3/4″ x 1 3/4″Punch Construction: Hardened SteelPunch Dimensions: 3/8″ x 5 1/4″Overall Weight: 14 ozFor pipes 6″ and upLegs are magnetized for carbon steel pipe.

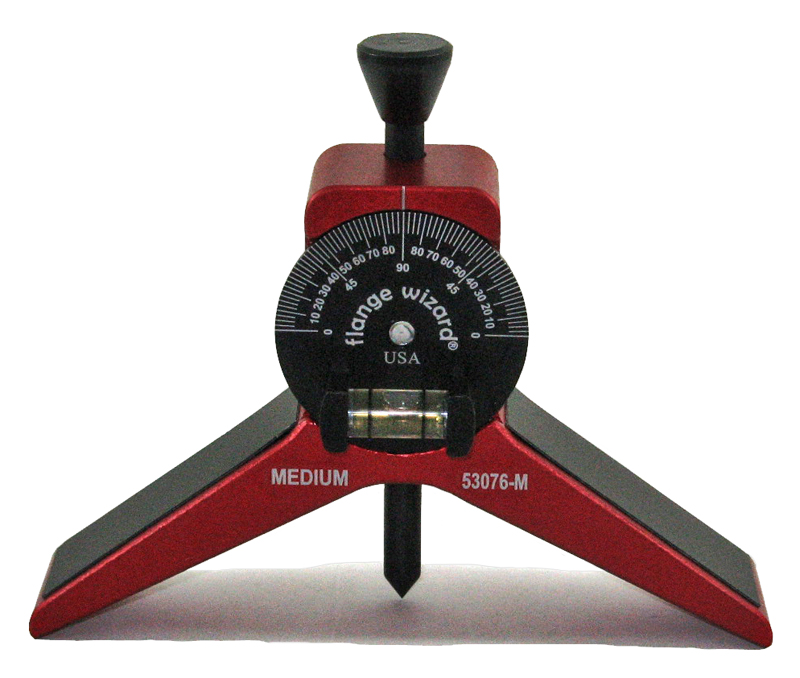

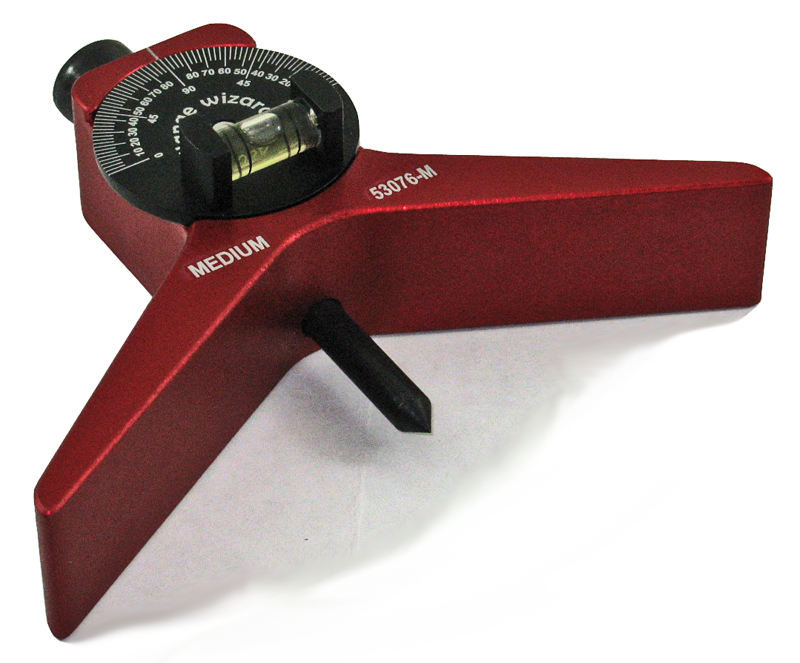

The Centering Head Magnetic Medium with its one piece "Y" shaped body is designed to establish and mark a centerline at any angle around the circumference (inside or outside) on a pipe or tank. Use it as a protractor level, or remove and use the hardened center punch for other marking jobs. The easy to replace 360° vial makes it a snap to repair. The 2-1/2° increments are now replaceable on the main body for lasting service. This tool is a must for the pipe welder or pipe fitter's toolbox.

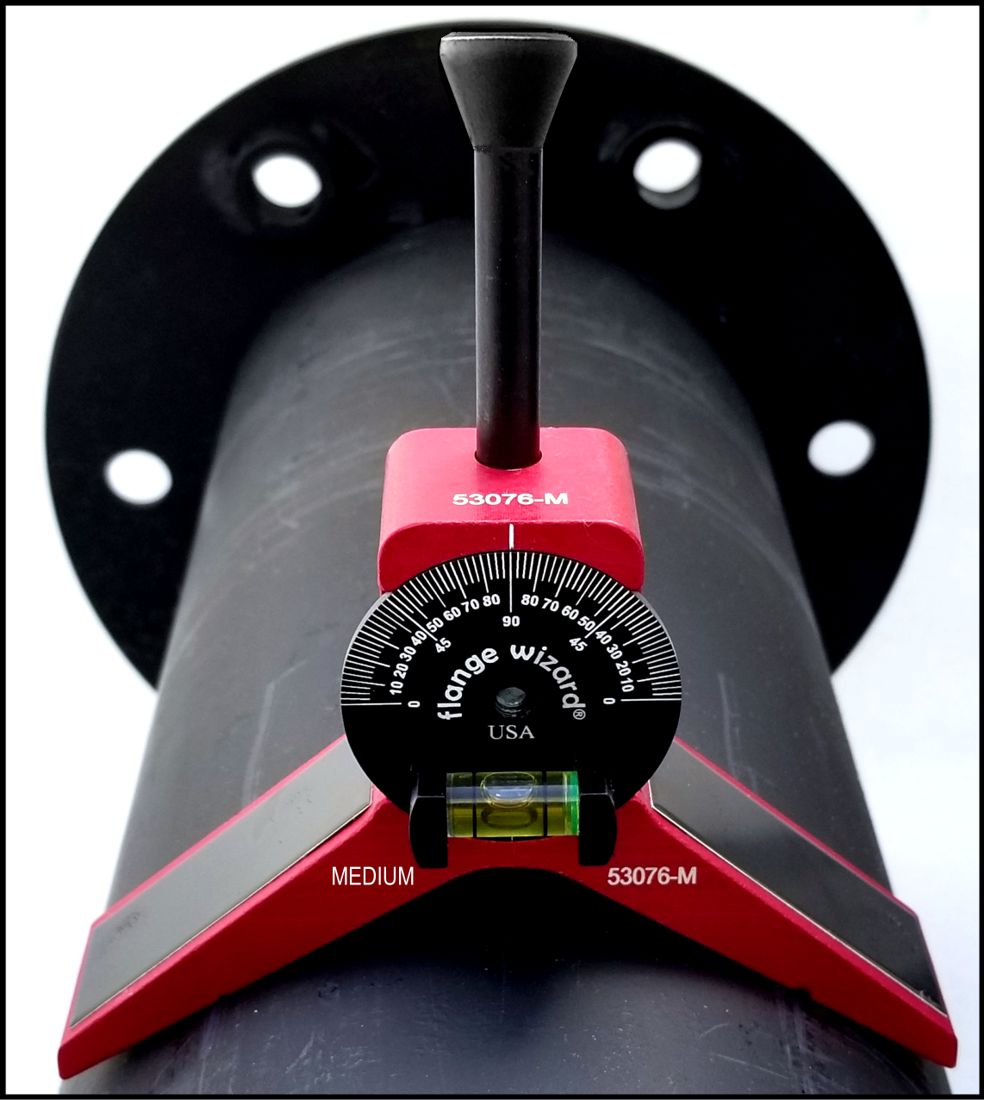

It is used to find top dead center, bottom dead center, and other angles around the pipe. Once the angle is located, you hit the hardened center punch with your hammer.
